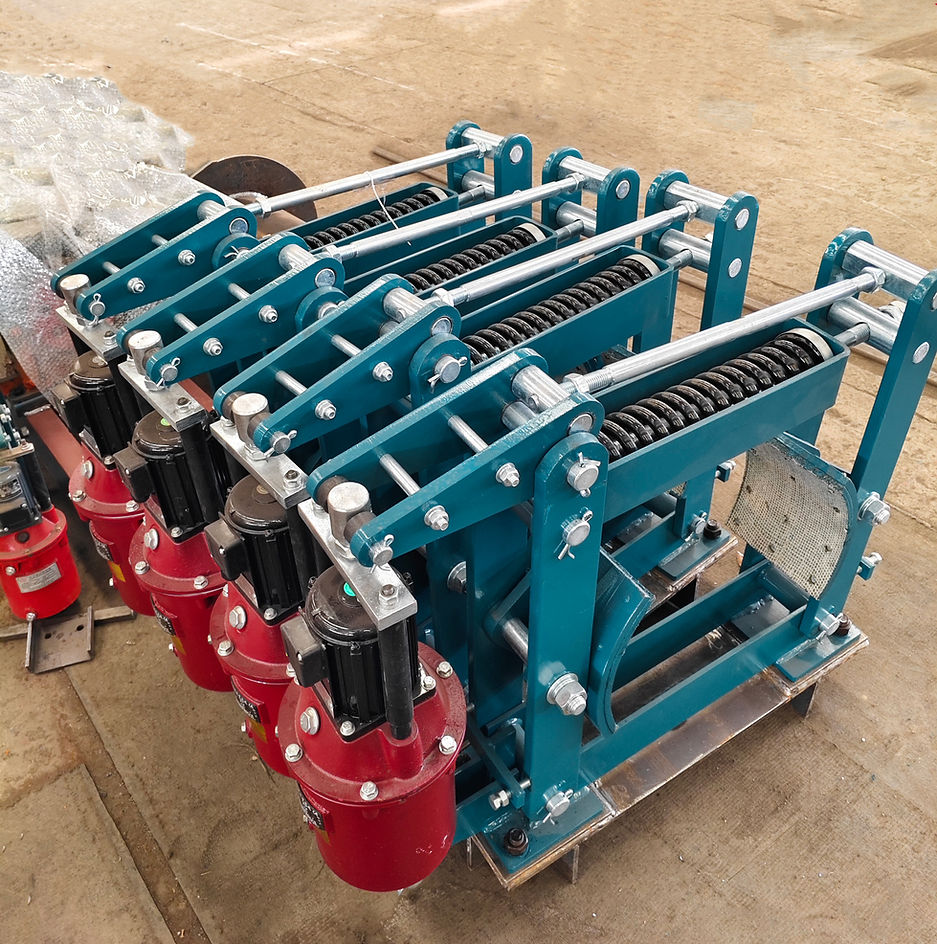

Drum Hydraulic Brake
Description:
The hydraulic brake is installed on the winch drum to brake the drum. It can be widely used in hoisting, transportation, metallurgy, mining, ports, terminals, construction, etc.
This brake system offers safe and reliable performance, ensuring smooth braking and a high frequency of operational movements. The main swing hinge is equipped with self-lubricating bearings, which provide high transmission efficiency and long service life, eliminating the need for lubrication during use.
Additionally, the brake features non-asbestos brake pads and a plug-in card installation method for the brake segments, which ensures safety, reliability, and ease of replacement. An interlocking back distance adjustment device maintains equal pad clearance on both sides during operation, preventing one-sided disengagement and ensuring consistent contact with the brake wheel.
Working Environment:
-
Environment temperature: -20 ℃ -50 ℃.
-
Humidity: ＜90%.
-
Work environment has no flammable, explosive and corrosive gases.
Models:
-
Available Models:
YW, YWZ3B, YWZ4B, YWZ5, YWZ8, YWZ9, YWZ10, YWZ12, YWZ13, YWZB, YWL, YWP. -
Note:
Models YWZB, YWZ4B, YWZ8, and YWZ13 are interchangeable. -
YWZB is compatible with YT-type thrusters, while YWZ4B, YWZ8, and YWZ13 work with ED-type thrusters.
-
YWZ8 and YWZ13 feature equal backlash mechanisms.
-
YWZ13 has side-mounted springs housed within a spring tube.
-
Both YWZ8 and YWZ13 come with a brake torque gauge and can be optionally fitted with a pad automatic wear compensation device.
Features:
-
Reliable Performance: Delivers stable braking with high operational frequency.
-
Maintenance-Free Bearings: The main swing hinge uses self-lubricating bearings, ensuring high transmission efficiency and extended service life without the need for additional lubrication.
-
Adjustable Brake Torque: The internal spring is housed in a reservoir, with an external torque scale for intuitive and convenient adjustment.
-
Quick-Fit Brake Pad Design: The brake pad and shoe adopt an insert-style configuration, offering reliability and ease of installation and replacement.
-
Equal Clearance Mechanism: A chain-type equalizing device maintains uniform clearance between both brake shoes, preventing one-sided contact and ensuring consistent braking.
-
Automatic Wear Compensation: Automatically adjusts for brake pad wear, maintaining consistent performance without manual intervention.
-
Manual Release Function: Allows for easy manual release of the brake, simplifying inspection and maintenance.
